UL Listed 16mm 3 Position Rotary Switch 5/8in Selector Switch Select Button Latching 5Amp 250V On Off On 2NO 2NC DPDT 6Pin with Wire 2Pcs

Package include : 2* Selector Switch 2* Wire Connector Sockets What's the Wire Connector: With the wire connector, you don't need to solder the terminals, make installing very easy Saves the issue of soldering to the switch, and possibly melting it as well You can replace the switch anytime by just unplugging the switch from its socket What's Selector Switch Used for: Scope of application: punch, Automation equipment,Testing instrument and other circuit equipment.used widely to control the electronmagnetic Starter contactor,relay and other automaatic control electric circuits. What's Note: -The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out What's Customer Support: If you have any questions, feel free to contact us by E-mail any time. We get professional customer service staff and technician to help you Specifications: Head diameter: 18mm Mounting hole size: 0.63"" (16mm) Switch combination: 2 Position,1NO 1NC SPDT ; 3 Position,2NO 2NC DPDTSwitch rating: 5A/250VAC Head shape: Round Cap Protection level: IP54

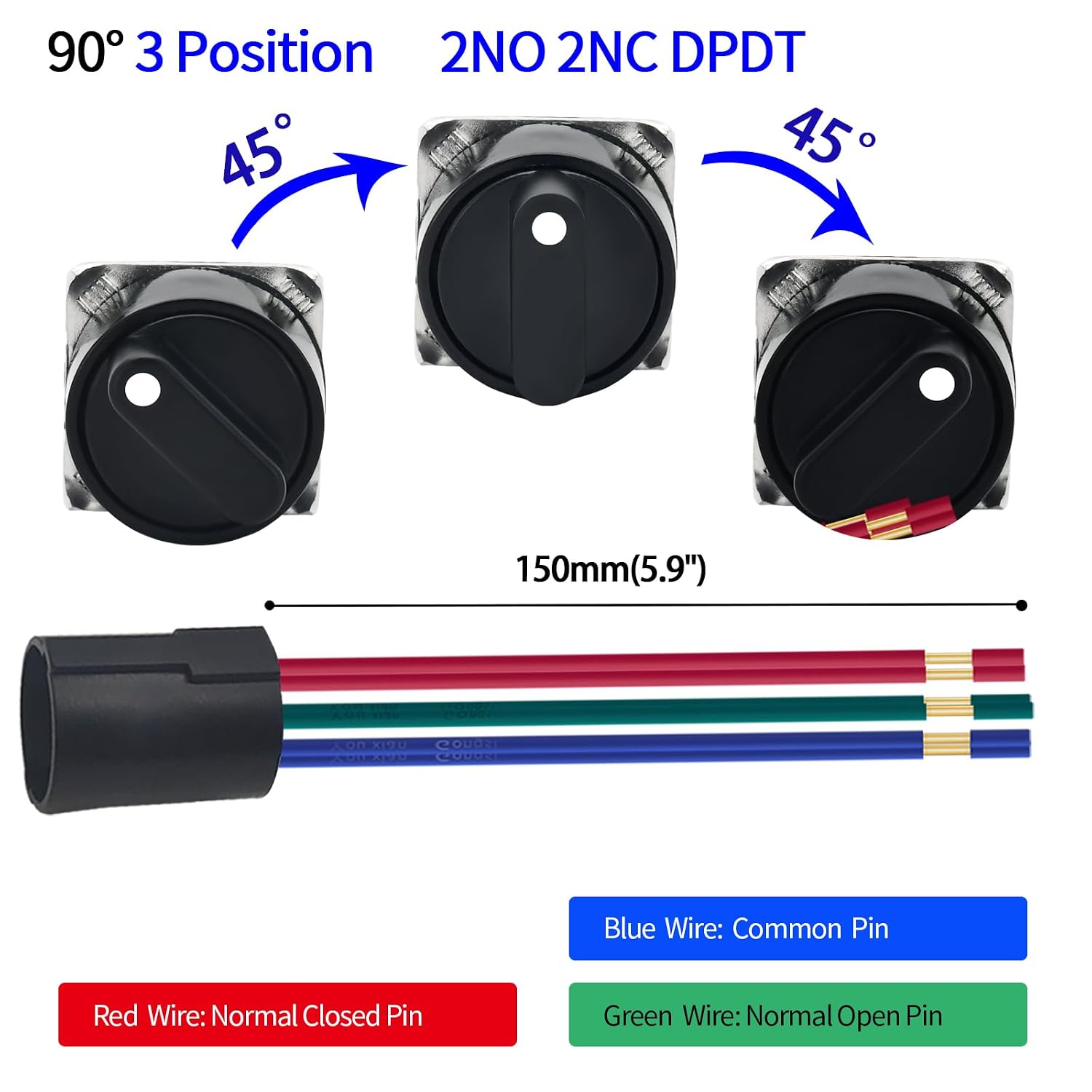

• { UL-Certification for Global Use} UL Listed, CE, CCC certified and RoHS compliant. 3 Position rotary switch, rotation position: 90° 3 Position, left, middle, and right.
• 16mm Rotary switch 3 position, Contact Type: 2-Way 2NO 2NC DPDT 6 Pin, mini double pole rotary switch. Mounting Hole Dia:16mm, 5/8inch. Net weight: only 0.02pound. Working mode: On-Off-On.
• ★ Function ①: 3 Position rotary switch controls the first device to turn left, closes in the middle, and only controls the second device to turn right. ★ Function 2: Rotate left or right to control 2 devices simultaneously, with the middle closed.
• {High-Grade Plated Conductive Parts} Built with silver-gold plated contacts and copper-gold plated pins, providing excellent conductivity, low resistance, oxidation resistance and stable electrical connection.
• Package Content include:2 Pcs 3 Position Selector Switch, 2 Wire Connector Sockets. { Extra-Long Mechanical Life } High-precision structure supports up to 250,000 mechanical cycles, ensuring reliable operation and long service life even under frequent switching.
