Taidacent K Type Thermocouple Module MODBUS RS485 MAX6675 Temperature Sensor Acquisition Temperature Collector Module MODBUS Communication (RS485 to USB Module)

Name: Thermocouple collector high temperature temperature collector Features: Directly connected to K-type thermocouple, the temperature can be directly measured with 485 bus With RS485 to USB module, you can read directly from the computer through the debugging assistant software Communication method: RS485 Measuring temperature range: 0~1024℃ Resolution: 0.5 degrees Celsius Maximum acquisition rate: 5Hz Size: 44mm*38.6mm (length * width) Data format: real temperature*10 (for example, the read value is 2627, which means the temperature is 262.7°C) Working voltage: 5V Access K-type thermocouple test method 1. Configure the communication parameters as shown in the figure (the serial port number is filled in according to the port number recognized by your computer, and other parameters are consistent with the figure) The communication data to be configured is as follows: Baud rate: 9600 Check Digit: None Data bits: 8 Stop bit: 1 View COMO method: win7: computer -> right click -> management -> device manager -> terminal D (COM and LPT) win8/10: bottom left of the desktop -> right click--> device manager -> port (COM and LPT) 2. Open the serial port 3. Configure the device address as: 1 modbus protocol: local address: 0X01 Read command: 0X03 Register address: 0X0000 Number of reads: 1 4. The configuration register address is: 0 com 5. The number of configurations is: 1 6. Click the read button to read the temperature value (displayed as 245 in decimal, which means the read value is 24.5C)

• Working voltage: 5V
• Measuring temperature range: 0~1024℃
• Resolution: 0.5 degrees Celsius

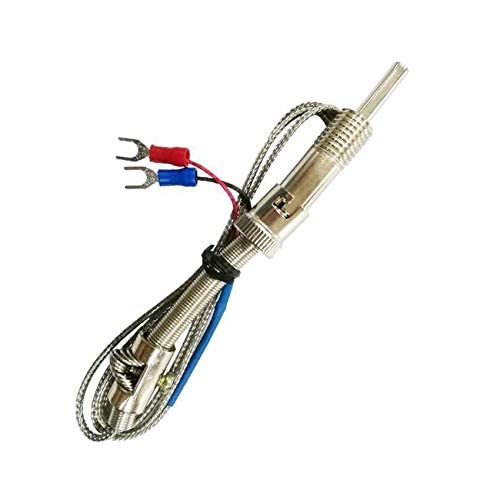

• Directly connected to K-type thermocouple, the temperature can be directly measured with 485 bus

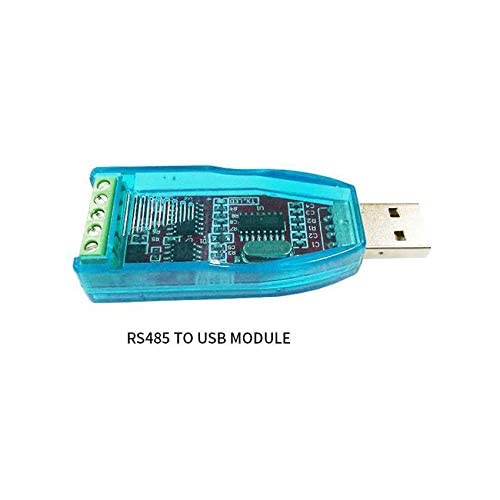

• With RS485 to USB module, you can read directly from the computer through the debugging assistant software
