SV08-47A-0-N-00 Solenoid Operated Spool Cartridge Valve
Product details
| Management number | 247465070 | Release Date | 2026/08/16 | List Price | US$39.29 | Model Number | 247465070 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

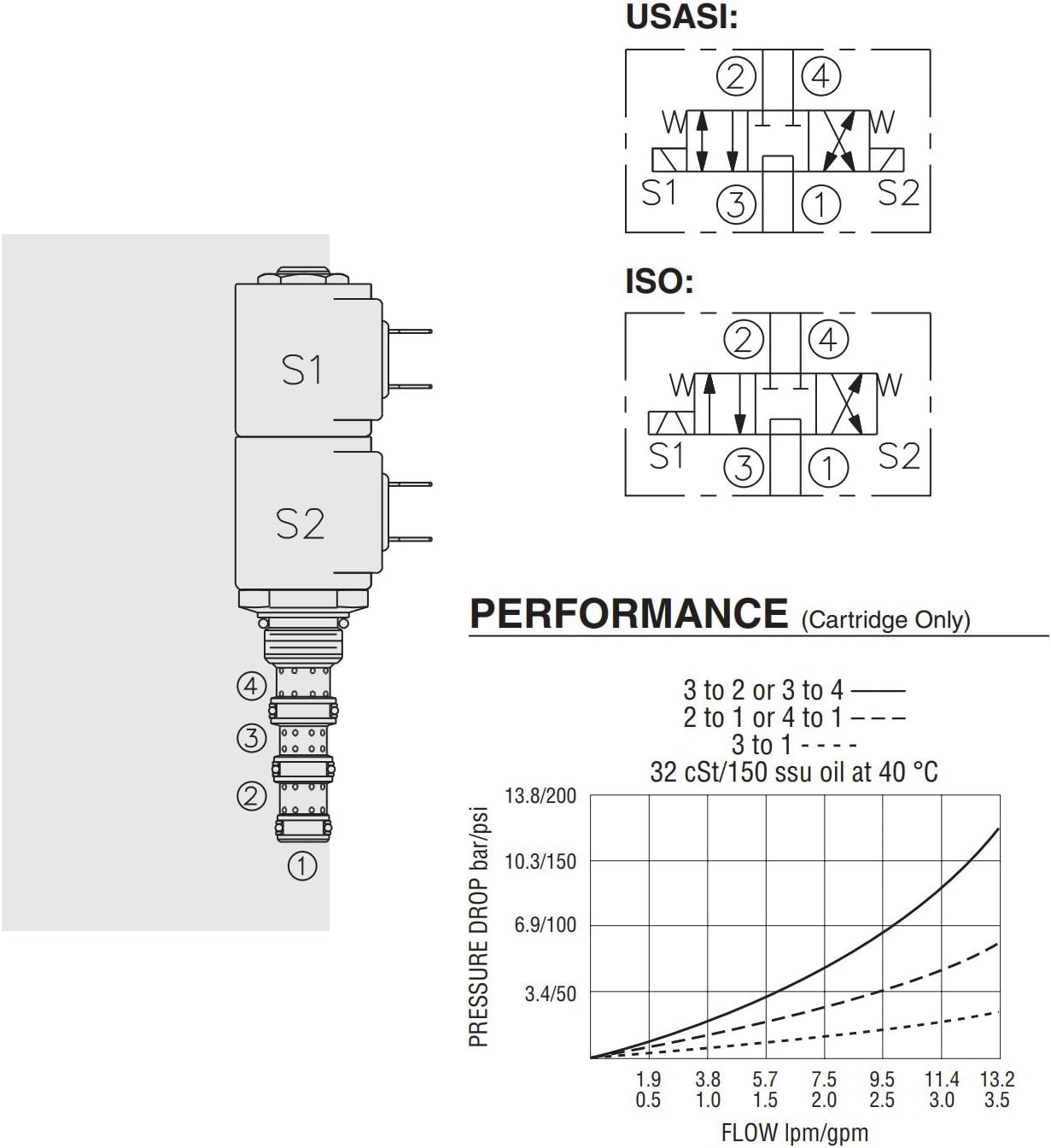

Hydraforce Part Number: SV08-47A-0-N-00Directional Valve, 4-Way, 3-Position, Tandem CenterSolenoid-operated, 4-way, 3-position, direct-acting, spool-type, tandem center, screw-inhydraulic cartridge valve.When de-energized, the SV08-47A blocks cylinder ports, while allowing flow from 3 to 1. When coil #1 is energized, flow is allowed from 3 to 2, and from 4 to 1. When coil #2 is energized, flow is allowed from 3 to 4, and from 2 to 1.In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2. While 1 may be fully pressurized, it is not intended for use as the valve’s inlet.Features:3 GPM max Flow3000 PSI RatedFits VC08-4 CavityUses Size 08 (1/2″ Hole) Solenoids
- Hydraforce Part Number: SV08-47A-0-N-00
- Directional Valve, 4-Way, 3-Position, Tandem Center
- 3 GPM max Flow
- 3000 PSI Rated
- Uses Size 08 (1/2″ Hole) Solenoids
| UPC | 765552693055 |
|---|---|
| ASIN | B079Q4CD3L |
| Size | 1/2 inch |
| Brand Name | Hydraforce |
| Unit Count | 1 Count |
| Valve Type | Solenoid Valve |
| Thread Size | 1/2 inch |
| Thread Type | NPT |
| Manufacturer | HydraForce |
| Model Number | SV08-47A-0-N-00 |
| Material Type | Steel |
| Connector Type | Deutsch Connector |
| Exterior Finish | Steel |
| Number of Items | 1 |
| Number of Packs | 1 |
| Number of Ports | 3 |
| Maximum Pressure | 3000 psi |
| Specification Met | ANSI B16.5, ASME B16.34 |
| Inlet Connection Type | Deutsch Connector |
| Outlet Connection Size | 0.5 inches |
| Outlet Connection Type | NPT |
