LS170 Colorimeter, Portable Color Reader, Color Matching Tool for Color Measurement and Comparison

Specifications: Illumination geometry: 45/0 (45°annular illumination, 0° viewing angle) Illumination light source: Full spectrum LED light source Measuring aperture: 8mm Measurement conditions: Light source D65, field of view 10° Measuring time: about 1s Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 Repeatability: Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) Dimension: 31.7×31.7×70.4mm (L*W*H) Weight: about 51g Power supply: Rechargeable lithium battery 3.7V@700mAh,can continuously measure 10,000 times under full power Charging port: USB (Type-C) Operating temperature: 0~45℃, 0~85%RH (no condensation) Storing temperature: -25~55℃, 0~85%RH (no condensation) Packing list 1 x LS170 Colorimeter 1 x USB data cable 1 x Cleaning cloth 1 x User manual 1 x Certificate / Warranty card 1 x Calibration Report

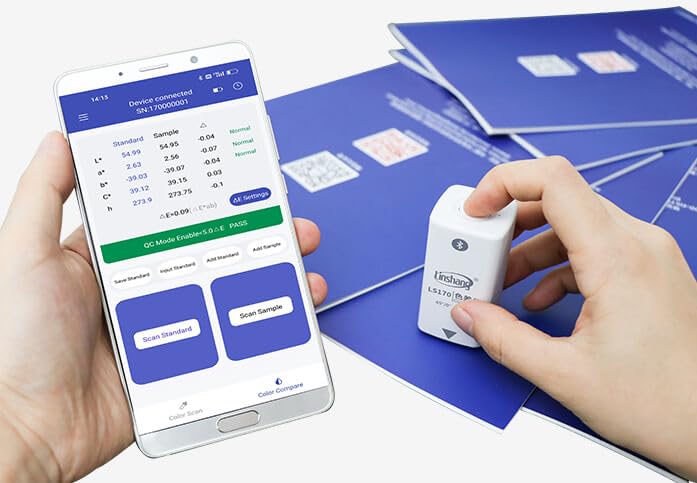

• In color compare interface, we can select the standard color from the color charts or input the color data such as Lab values to find a color and using it for color comparison.

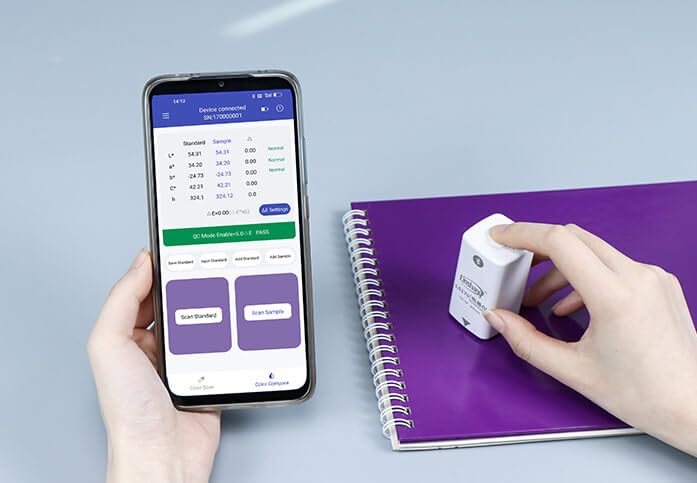

• Turning on the QC test function, batch detection can be conducted and the color difference threshold can be set to quickly achieve quality control.

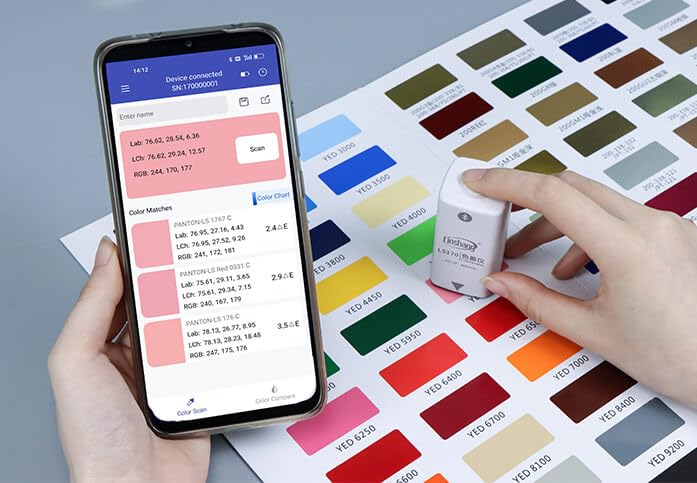

• Providing mutiple standard color charts and supporting to create personal color charts, the colorimeter can match the 3 closest color codes with over 90% matching accuracy
• A large amount of color can be stored in mobile app and make color measurement anytime and anywhere. Before measuring the color, we can select the color chart we need first.
• The color difference meter has seven color spaces such as LabRGBCMYK and six color difference formulas to choose from, matching the color measurement needs of various industries.
