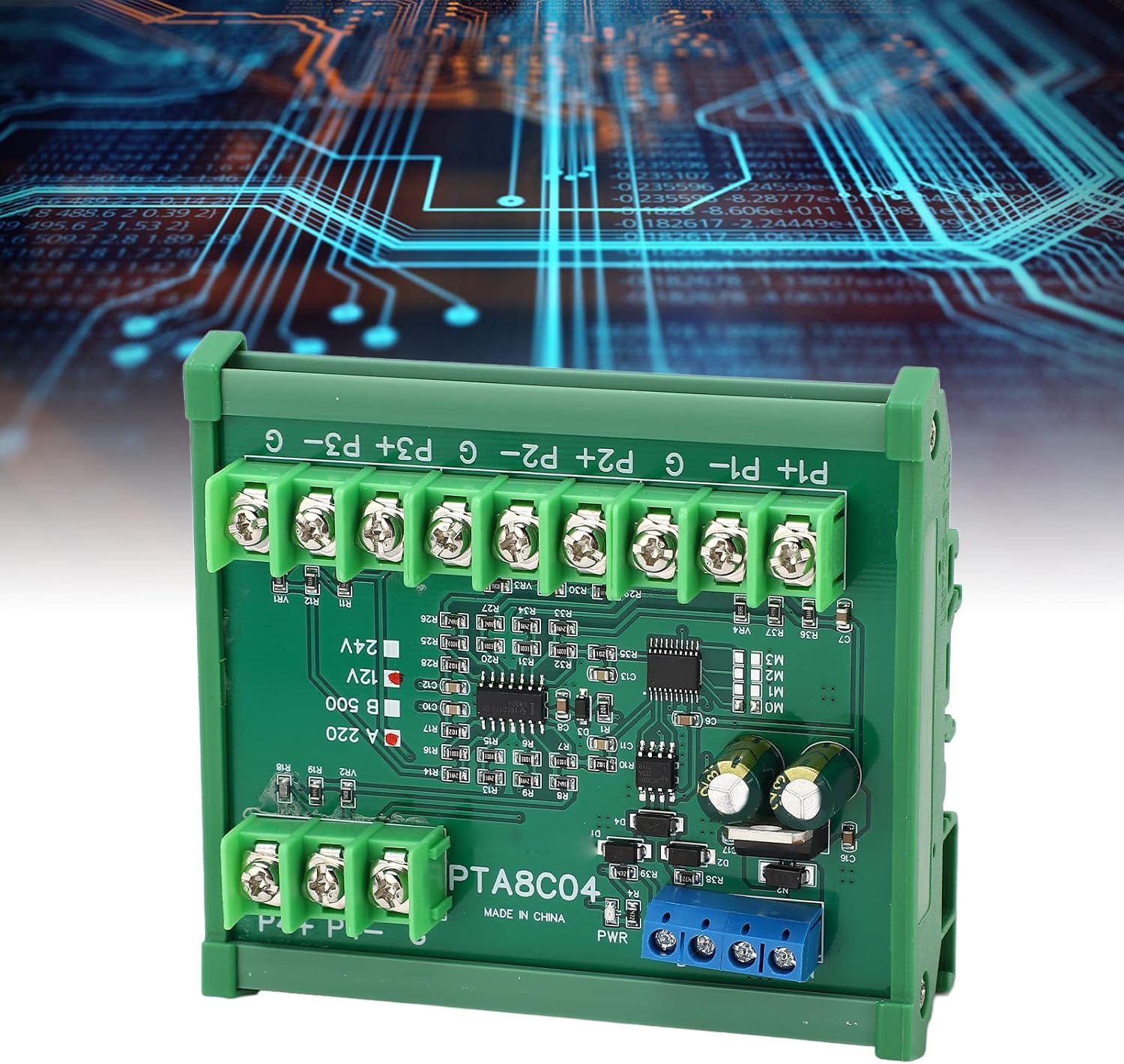

Eujgoov Temperature Sensor Module 4ch PT100 RTD RS485 Temperature Sensor Board RTU Collector PTA8C04 with Rail Housing (B500 DC24V)
Product details
| Management number | 247365768 | Release Date | 2026/08/16 | List Price | US$11.00 | Model Number | 247365768 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Spec:Item Type: Temperature Sensor ModuleWorking Current: 14-18MASerial Port Baud Rate: 9600(default), N, 8, 1Temperature Measurement Range: Installation: DIN35 and C45 railsHow to Use:3 Wire Probe Connection Mode: Red wire is connected to P+, and the other two wires of the same color are connected to P‑ and GND(ports are not distinguished).2 Wire Probe Connection Mode: Red line is connected to P+, blue line is connected to P‑, G.Package List:1 x Temperature Sensor Module
- TYPICAL APPLICATIONS: Modules can be used for constant temperature control, industrial systems, consumer products, thermal systems, measuring instruments, indoor and outdoor temperature measurement, vegetable garden temperature, weather forecast and monitoring, room temperature, warehouse temperature
- WITH FITTINGS: Temperature sensor module with acquisition is equipped with rail and housing, convenient for you to use
- CONNECTABLE MODULES: A maximum of 247 modules can be cascaded by modifying the 485 address(use R485 repeater for more than 16 modules)
- READ OR WRITE NUMBER: Support protocol, 03 read command, 06 or 16 write command, module can read temperature and PT100 value
- APPLICABLE SENSOR: Temperature sensor module is suitable for PT100 3 wire or 2 wire sensors, very useful
| ASIN | B0C8ZSJSB7 |
|---|---|
| Size | B500 DC24V |
| Material | Copper |
| Item Weight | 4.2 ounces |
| Part Number | Eujgoov42ki9th8an-14 |
| Manufacturer | Eujgoov |
| Item model number | Eujgoov42ki9th8an-14 |
| Package Dimensions | 5.75 x 3.54 x 1.77 inches |
