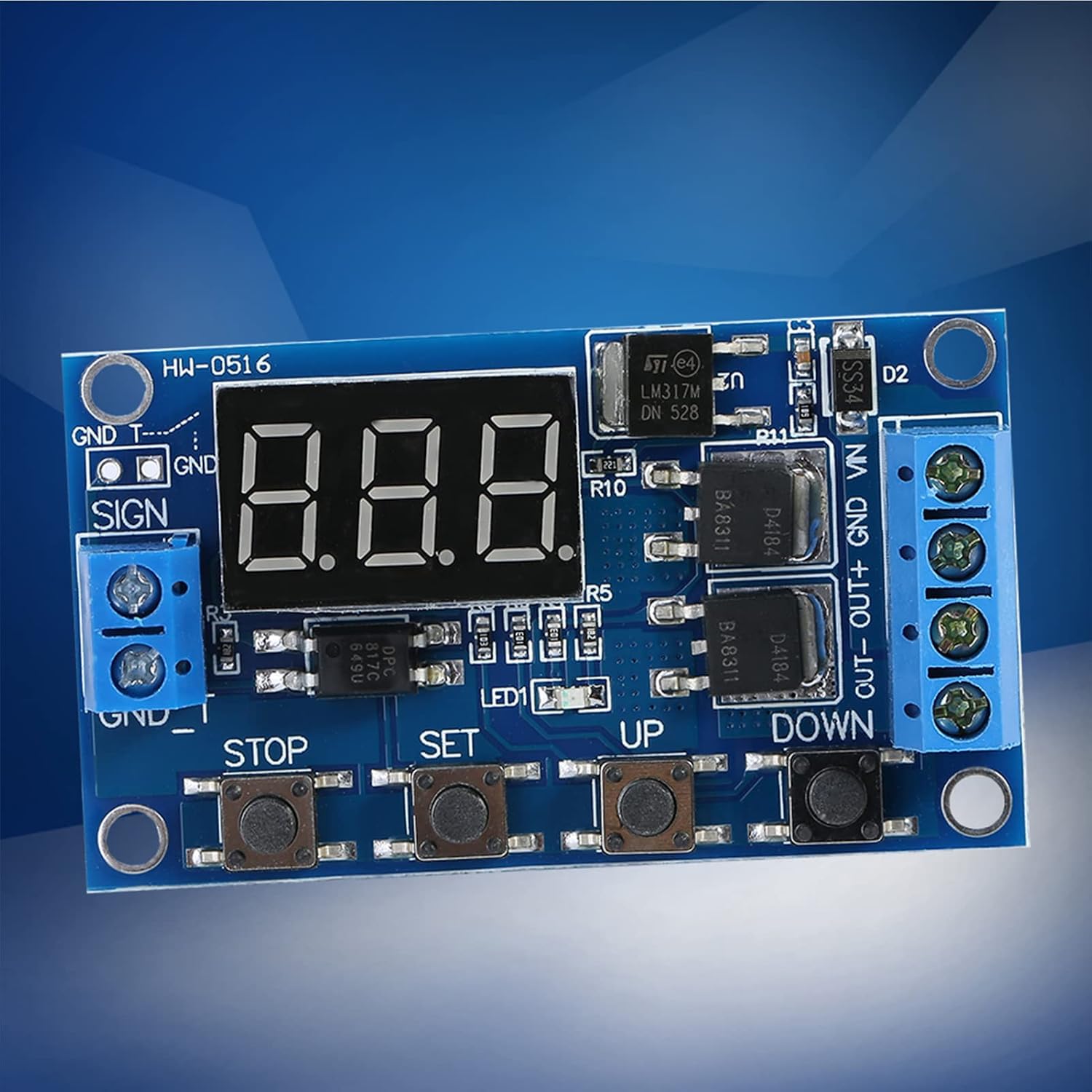

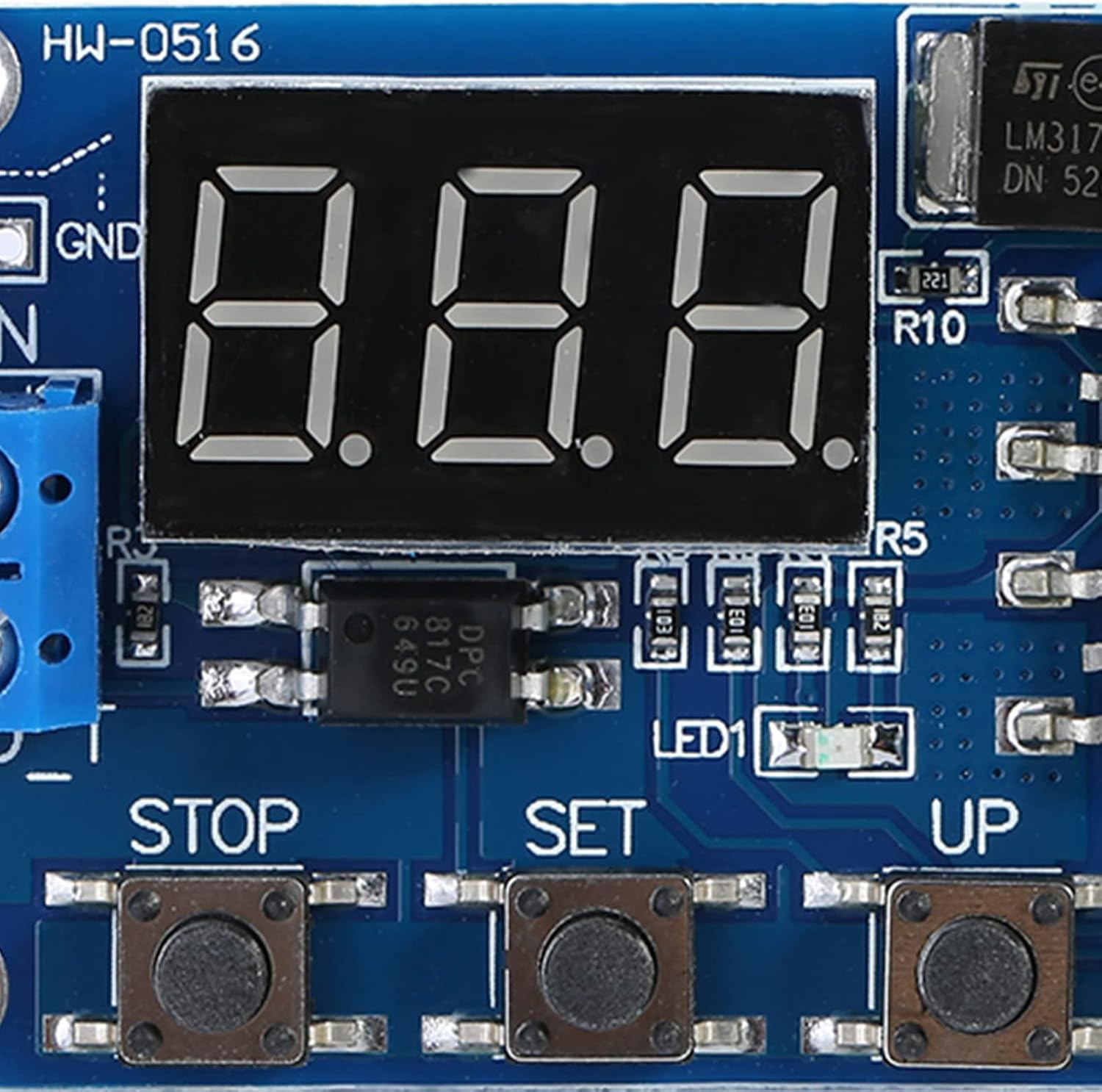

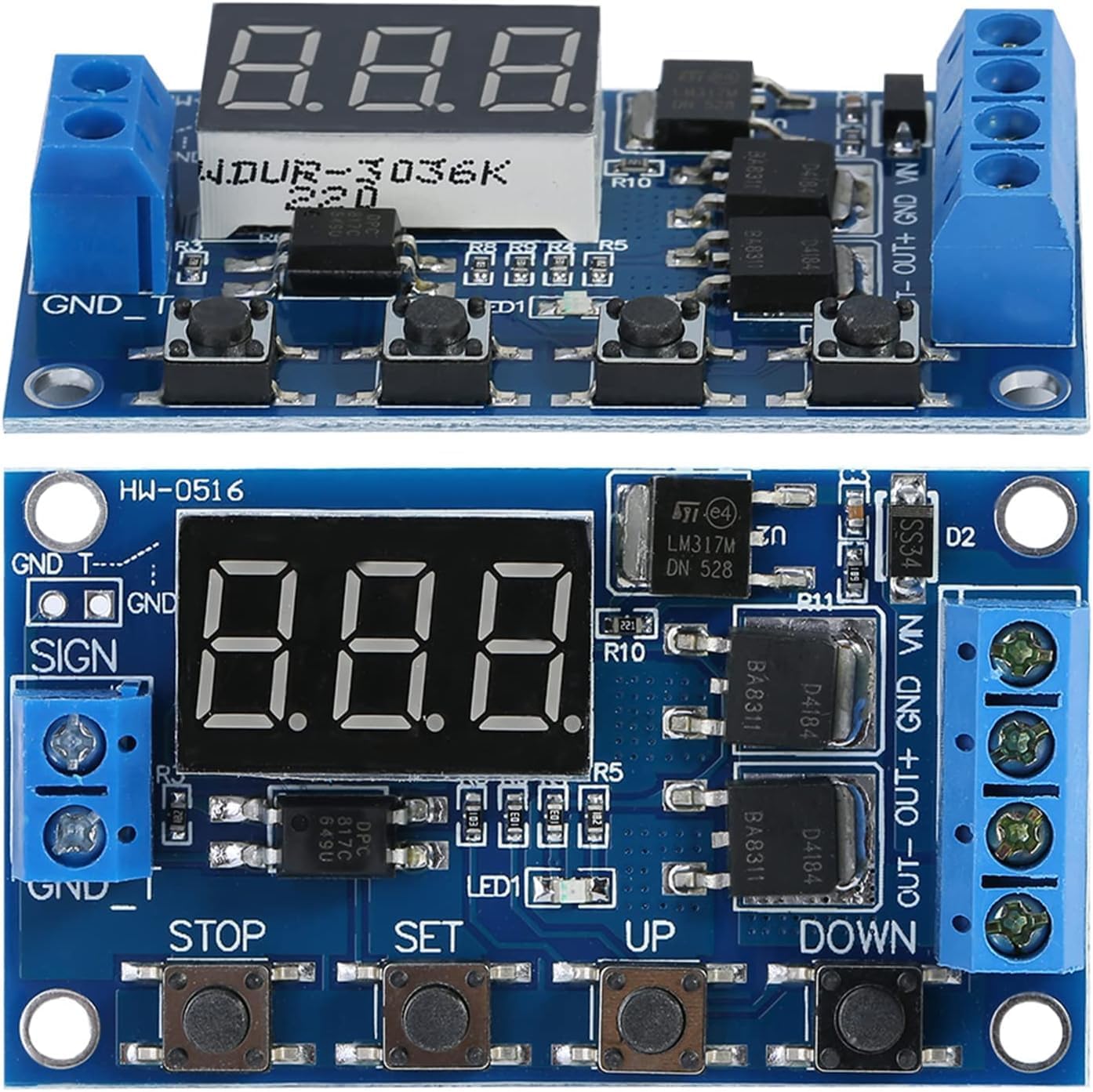

DC 5V-36V Cycle Timer Delay, Programmable Timer Switch Delay Relay Module | Dual-MOS Output Adjustable Time Delay with LED Display, 12V (0.1s to 999min), High Power Capacity Emergency Stop Function

Features:To achieve fast turn-on and off circuit, an unlimited number of switching times.No noise was made during turning on/off, no spark, and no electromagnetic interference.Compared to normal electromagnetic relay modules, it has a longer service life.Dual-MOS in parallel active output, lower inner resistance, larger current, strong power; at room temperature, operating current is up to 15A, power up to 400W, that can be used for most equipment.It has an emergency stop function ("STOP" button) and reverse input protection.Automatically enter sleep mode and shut off display if no operation in 5 minutes, and will be wake up by pressing any button.You can set different OP, CL, LOP parameters, which are independent of each other, and are saved separately;All parameter settings will be saved automatically if there is a power failure.Specifications:Output Capacity: DC 5V~36V, at room temperature, continuous current is 15A, power 400W. With enhanced heat dissipation, the current can be up to 30A.Quiescent Current: 20mAOperating Current: 50mAWorking Temperature: -40℃~85℃Clocking (Time Delay) Range: 0.1seconds to 999minutesSize: 60*34*12mm / 2.36*1.33*0.47"Package Includes:1 x Timer Switch Module

• HIGH PERFORMANCE AND DURABILITY: This DC 5V-36V Cycle Delay Timer Switch features high-frequency switching with an unlimited number of on/off cycles, ensuring reliable performance and a long service life. Compared to traditional electromagnetic relay modules, it operates silently without sparks or electromagnetic interference, making it a superior option for consistent, noisefree operation. The module is built for both stability and low power consumption, ideal for demanding application
• WIDE VOLTAGE AND HIGH POWER CAPACITY: Supporting input voltage from 5V to 36V, this 36V control module can be used to control a wide range of equipment such as DC motors, LED strips, solenoid valves, and more. With the capability of handling up to 15A of continuous current and 400W of power at room temperature, this module is good for high-power applications. Enhanced heat dissipation allows it to operate up to 30A, making it suitable for most devices requiring robust power handling
• PRECISE TIME DELAY AND ADJUSTABLE PARAMETERS: Offering an impressive time delay range of 0.1 seconds to 999 minutes, this module allows for flexible and accurate timing control. You can easily set different operational parameters such as OP, CL, and LOP independently, which are saved automatically. This makes it a versatile solution for various time-based switching applications, from industrial control systems to DIY electronics
• EMERGENCY STOP FUNCTION AND REVERSE PROTECTION: Equipped with an emergency stop button ("STOP") for immediate shutdown, this time relay switch ensures safe operation in case of unexpected conditions. Additionally, the module features reverse input protection, preventing damage from incorrect wiring. This robust safety feature enhances the reliability and longevity of your equipment
• ENERGY SAVING AND AUTOMATIC SLEEP MODE: This delay timer relay is designed with energy efficiency in mind. After 5 minutes of inactivity, the digital display automatically enters sleep mode to conserve energy. Simply press any button to wake it up. This feature ensures that the module only consumes power when necessary, extending its lifespan and reducing unnecessary power usage
