BTF-LIGHTING SP630E 12-in-1 Bluetooth LED Controller with Mic, DC5V/12V/24V | Support PWM Monochrome CCT RGB RGBW RGBCCT Or SPI TTL IC Chip LED Strip WS2811 WS2812B WS2805 WS2814 WS2815 SK6812 LB1934 etc
Product details
| Management number | 247034812 | Release Date | 2026/08/16 | List Price | US$6.40 | Model Number | 247034812 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Support PWM LED Strip. PWM LED strip which has no IC chip,fox example FCOB 5630 5730 5050 2835 3528 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW) .Monochrome Light and CCT light have no function of DIY light effect.
- Support Addressable IC Chip LED Strip. SPI TTL IC Chip LED strip. 3pin(V+ Data GND) or 4pin(V+ Data Backup GND). For example WS2811 WS2812B WS2813 WS2814 WS2815 SK6812 LB1934 IC chip etc single color, CCT, RGB, RGBW, RGBCCT addressable LED strip. Can not support SK9822 WS2801 etc Data+Clock LED strip. Monochrome Light and CCT light have no function of DIY light effect.
- The SP630E controller's SPI interface supports a maximum of 600 ICs for single-color LED strips, 600 ICs for CCT (dual-color-temperature) LED strips, 600 ICs for RGB LED strips, 450 ICs for RGBW LED strips, and 300 ICs for RGBCCT LED strips, with all values representing the upper control limits under optimal operating conditions.
- Support SPI+PWM LED Strip at the same time.For example you can controller WS2812B IC RGB LED strip + FCOB 3000K single color no IC strip or WS2812B IC RGB LED strip + FCOB CCT no IC strip.
- DIY .You can make your own lighting effect for the LED strip.Banlan X APP bluetooth control .Three APP operating interfaces: static effect, dynamic effect and music effect.Great for DIYers, renovators, pros, and beginners for cabinets, shelves, TV backs, offices, RVs, or PCs. (Note:Only when the parameter settings of all SP630E are consistent can the APP grouping function be used.)
- DC5V, DC12V or DC24V. 5.5mmx2.1mm DC power jack. Please use DC5V power supply for DC5V LED strip.6A/Channel ,Max 12A.
- Color calibration. When the app color is inconsistent with the color of the LED strip, the color can be calibrated to make it consistent.
- Music lighting effects. 3 kinds of collection methods, mobile phone microphone, player streaming, Built-in high-sensitivity microphone.
- Timing function.You can set up to 5 timers.With memory function in case of power-down.
| ASIN | B0BPCH695M |
|---|---|
| Color | White |
| Theme | Home Ligting |
| Voltage | 12 volts_of_direct_current |
| Wattage | 90 watts |
| Occasion | Christmas |
| Brand Name | BTF-LIGHTING |
| Unit Count | 1 Count |
| Form Factor | controller |
| Item Length | 16.4 feet |
| Item Weight | 0.05 kg |
| Light Color | Multicolor |
| Manufacturer | BTF-LIGHTING Technology Co., Limited |
| Model Number | SP630E-US |
| Power Source | DC |
| Material Type | Polyvinyl Chloride |
| Product Style | Modern |
| Control Method | App |
| Controller Type | App Control |
| Number of Items | 1 |
| Light Source Type | LED |
| Additional Features | Bluetooth, PWM LED Strip, SPI LED Strip |

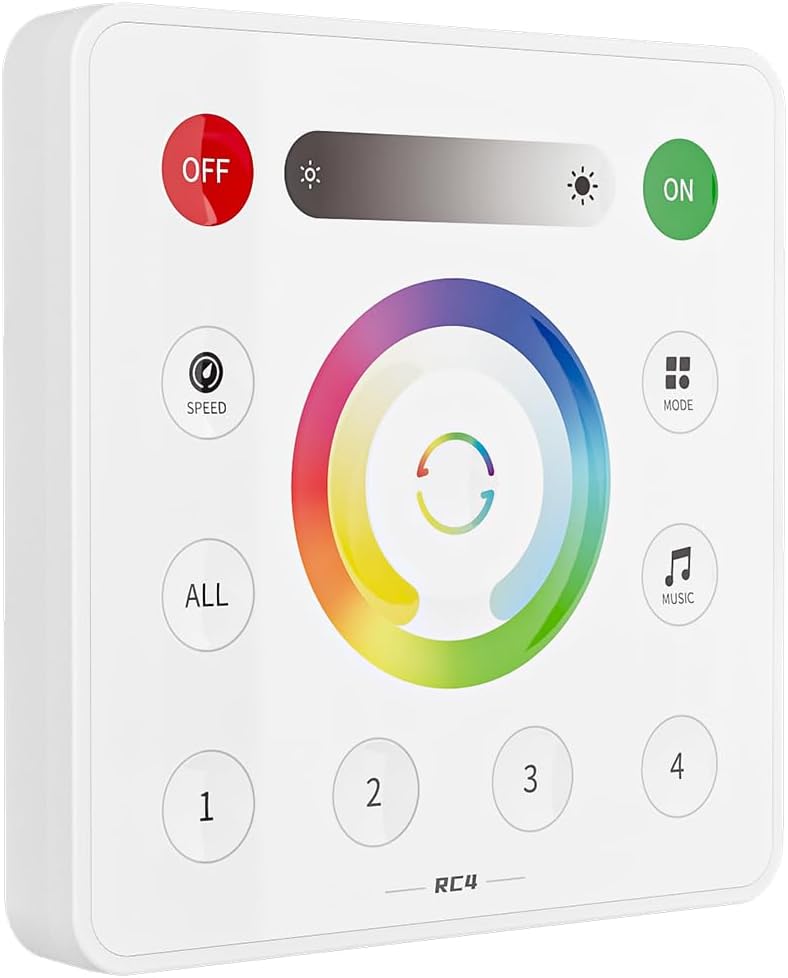

| Included Components | 1 x LED Controller, 2 x Remote Control |
| Indoor Outdoor Usage | Indoor |
| Connectivity Protocol | Bluetooth |
| Water Resistance Level | Not Water Resistant |
| hanging_pattern_layout | Linear |
| Connectivity Technology | Bluetooth |
| Number of Light Sources | 300 |
| Manufacturer Part Number | SP630E-US |
