BSIDE UX2 Digital Clamp Meter 200A AC/DC Current clamp | True RMS Auto-Ranging 6000 Counts Meter Hz Temperature Capacitance Live Check Low Impedance Voltage Tester

Why choose BSIDE UX2 clamp meter? With a wide range of test functions and features, it is a true clamp multimeter. Not limited to vehicles also applicable homes. 100mA sensitivity when measures AC/DC current by clamp Features: Measure microamps mA AC and DC current measure live-wire check, Diode Measure AC and DC Voltage, frequency, temperature, resistance, continuity, Duty cycle and capacitance Clamp on frequency function Auto range, Auto power off, low battery indication with Flashlight Specifications: Display: 6000 counts DC current: 0.10A-59.99A/0.01A/±(3.0%+5) 60.0A-200.0A/0.1A/±(3.0%+8) AC current: 0.10A-59.99A/0.01A/±(3.0%+5) 60.0A-200.0A/0.1A/±(3.0%+8) DC voltage: 0.001V-5.999V/0.001V/±(0.8%+3) 6.00V-59.99V/0.01V/±(0.8%+3) 60.0V-599.9V/0.1V/±(1.0%+5) 600V-610V/1V/±(1%+5) AC voltage: 0.050V-5.999V/0.001V/±(1.0%+3) 6.00V-59.99V/0.01V/±(1.0%+3) 60.0V-599.9V/0.1V/±(1.2%+5) 600V-610V/1V/±(1.2%+5) Resistance: 0.1Ω-599.9Ω/0.1Ω/±(1.2%+3) 0.600KΩ-5.999KΩ/0.001KΩ/±(1.2%+3) 6.00KΩ-59.99KΩ/0.01KΩ/±(1.2%+3) 60.0KΩ-599.9KΩ/0.1KΩ/±(1.2%+3) 0.600MΩ-5.999MΩ/0.001MΩ/±(2%+10) 6.00MΩ-60.00MΩ/0.01MΩ/±(2%+10) Capacitance: 0.010µF-5.999µF/0.001µF/±(3.5%+8) 6.00µF-59.99µF/0.01µF/±(3.5%+8) 60.0µF-599.9µF/0.1µF/±(3.5%+8) 0.600mF-5.999 mF/0.001mF/±(4.5%+10) 6.00mF-60mF/0.01mF/±(4.5%+10) Frequency:(900mVrms-20Vrms) 1.000Hz-9.999Hz/0.001Hz/±(2%+10) 10.00Hz-99.99Hz/0.01Hz/±(2%+10) 100.0Hz-999.9Hz/0.1Hz/±(2%+10) 1.000KHz-9.9KHz/0.001KHz/±(2.5%+12) 10.00KHz-99.99KHz/0.01KHz/±(2.5%+12) 100.0KHz-999.9KHz/0.1KHz/±(2.5%+12) 1.000MHz-9.999MHz/0.001MHz/±(3%+15) Duty Cycle: 10.0%-95.0% 0.1% ±3.0% Buzzer: If the resistance is less than 50Ω, the continuity beeper sounds Temperature: -50℃-0℃ 1℃ ±(2.0%+3 0℃-50℃ 1℃ ±(1.5%+2) 50℃-1000℃ 1℃ ±(2.0%+3) Size: 201.3x45.8x30mm Weight: 131g Package Includes: 1 x UX2 Clamp Meter 1 x Test Leads 1 x Thermocouple 1 x Charging Cable 1 x Carrying Case 1 x User Manual The readings will be influenced by earth's magnetic field because the clamp meter is use the Hall effect sensor to detect dc currents. We suggest you measure dc current as the follow suggestions. 1) Zero out the readings before each measurement. 2)Once you zero out the meter, hold the meter in the same orientation when taking readings. Don't tilt it, twist it, or rotate it. Otherwise, changing the orientation of the meter can give false readings due to different magnetic field strengths of the earth when the meter is oriented differently after it's been zeroed. 3) Measures the dc current within 3 seconds, and you will get a accurate results.

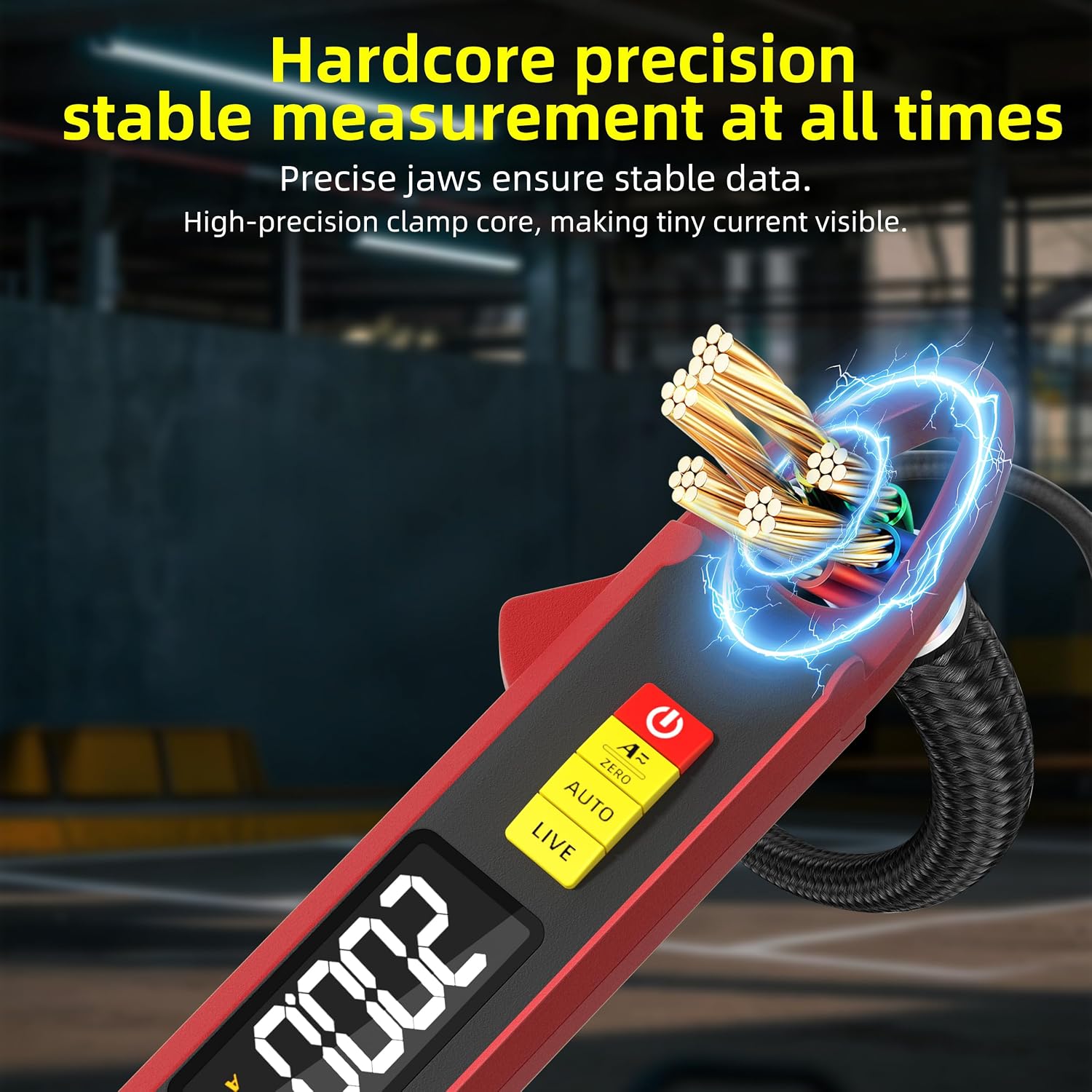

• 200A Current: UX2 clamp meter can automatically distinguish between AC and DC current measurements from 0.1-200A. Faster and safer testing of large currents.
• Automatic mode: no switching of gears and ranges required, automatic measurement of voltage, resistance, capacitance, frequency, duty cycle, diode, continuity. It allows for more convenient and faster data measurement.
• EBTN Display: The Electrical voltage tester is very clear with white illuminated letters on a black background, which make it easy to use in dark working environments.
• Rechargeable: This digital clamp meter is rechargeable, equipped with Type-C charging port and built-in rechargeable Li-ion battery. It can be recycled.
• 6000 Counts: This 6000 Words AC DC Clamp meter comes with a carrying case, making it easy to transport.
