98H Series 40 Amp Electric Button Breaker 125/250V AC 50V DC, Circuit Breaker Thermal Overload Protector 98 Series with Quick Connect Terminals, Manual Reset, Waterproof Button Cap
Product details
| Management number | 247175304 | Release Date | 2026/08/16 | List Price | US$5.60 | Model Number | 247175304 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

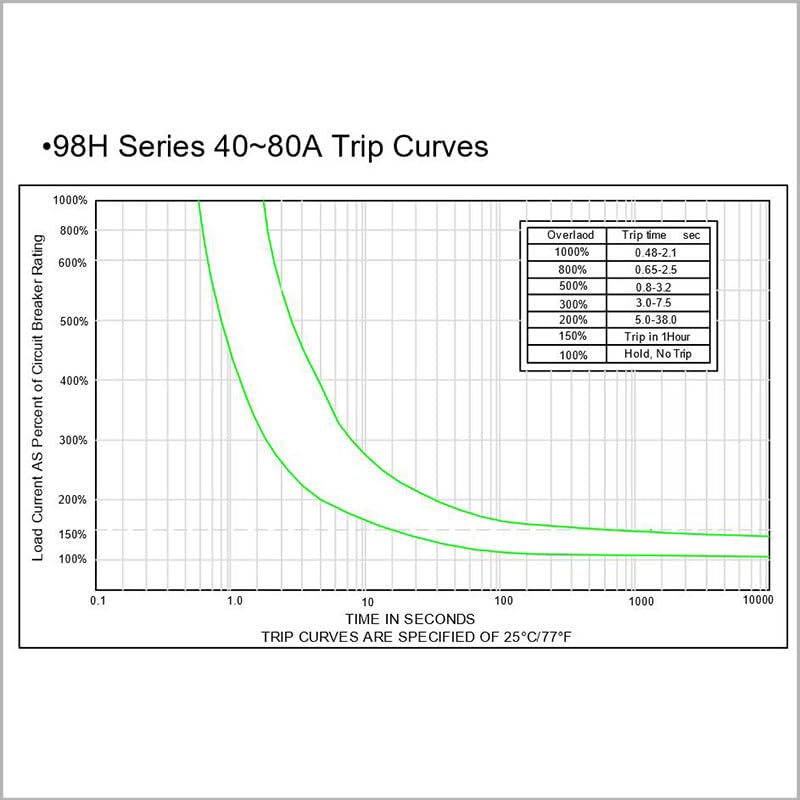

Technical data: Current rating range: 40-80A. Input voltage rating: 125/250VAC:50VDC. Interrupting Capacity: 125/250VAC X 1,000A(UL 1077). Typical life 500 operations at 200% overload Insulation co-ordination: Rated impulse withstand voltage 2. 5kv Dielectric Strength: >1500VAC/min Insulation Resistance: >100MOHM(DC 500V)" Degree of protection: Terminal area IP00, operating area IP40 Mechanical /Environmental Data Operating Ambient Temperature: -10℃to+60℃. Termination: Thickness 1.5mm: 10/24 unc Screwa. Nickle of plated Mounting: Various options. See Ordering Information and drawings Typical applications Tamstorms, Motors, Battery chargers, Power supplies appliances, extra low voltage systems, machinery Package inckuded: 2 x Manual Reset Thermal Circuit Breaker 30A

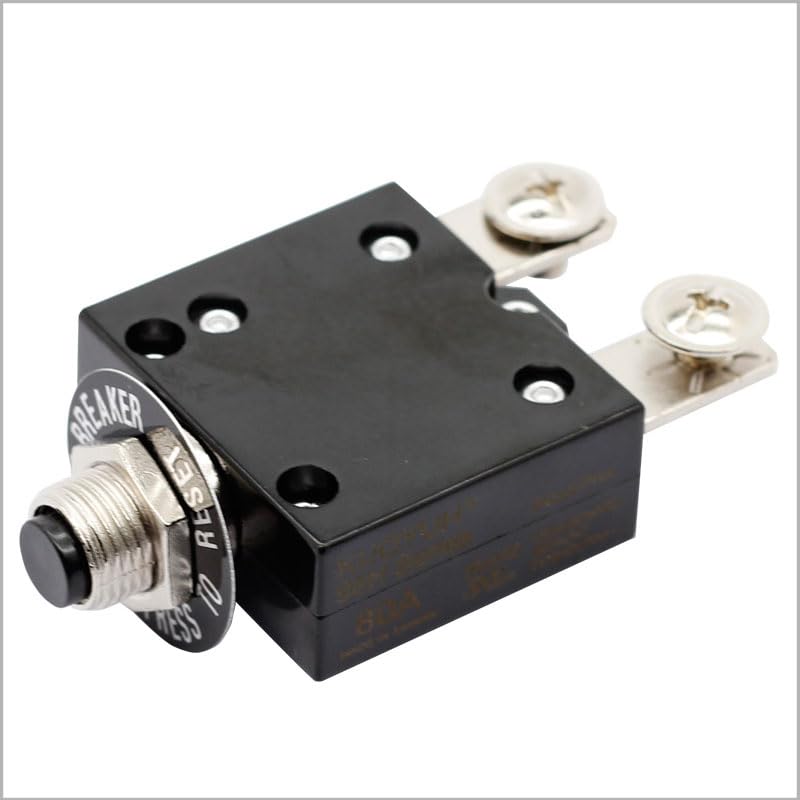

- Push-button Thermal Circuit Breakers with Transparent Cap.
- Working voltage: 125/250VAC; Rated power: 40A(AMP)
- Made of durable plastic with high quality. The reset switch is designed to protect the circuit and automatically cut off the circuit when the load exceeds the rated current, thus prolonging the service life.
- Built-in waterproof button cover for protection from the elements.
- Application: Tamstorms, Motors, Battery chargers, Power supplies appliances, extra low voltage systems, machinery
| UPC | 768510790964 |
|---|---|
| ASIN | B0CR429DGC |
| Model | 98H-40A |
| Voltage | 32 volts_of_alternating_current |
| Brand Name | BEISUOS |
| Item Weight | 32 g |
| Part Number | 98H-40A |
| Manufacturer | BEISUOS |
| Mounting Type | Clip-In Mount |
| Current Rating | 40 A |
| Number of Items | 1 |
| Number of Poles | 2 |
| Circuit Breaker Type | Standard |
