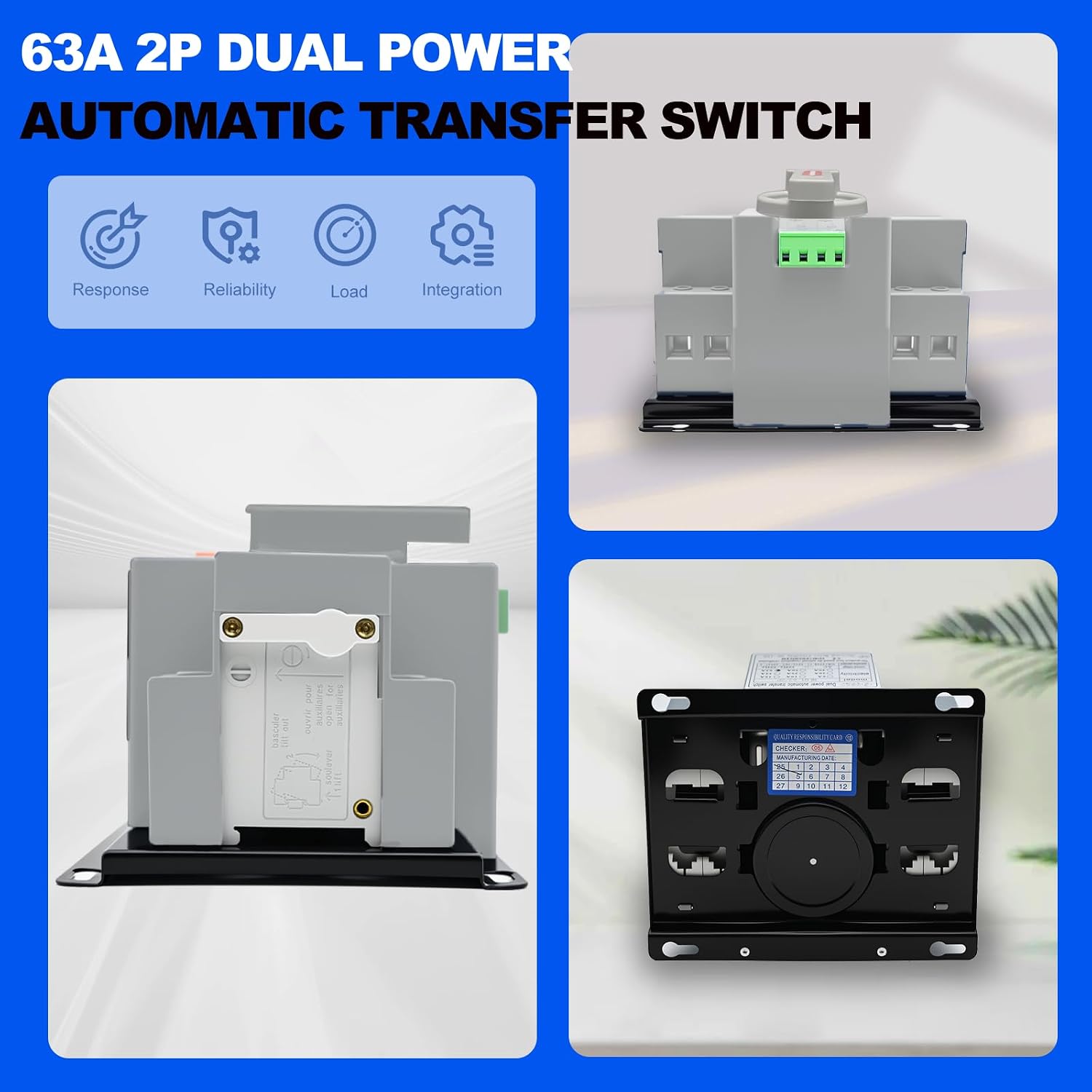

220V 2P 63A Dual Power Automatic Transfer Switch ATS, Changeover Switch for Generator CE Certified

220V 2P 63A Dual Power CE Certified ATS

• Automatic Transfer Switch: The ATS is designed for AC220V insulation and supports line currents ranging from 6A to 63A. It operates at both 50Hz and 60Hz frequencies, with a conversion time of approximately 2 seconds.
• Operating Modes: The ATS operates in two modes. In Auto Mode, the device is set to "Auto" for fully automatic monitoring and transfer between power sources. In Manual Mode, set to "Manual," power switching is controlled via the manual handle with three positions: Main ON, Both OFF, and Backup ON.
• Technical Specifications: The device is a CB-style ATS, built with two mechanically interlocked circuit breakers for safe operation. It contains a PCB control board integrated with a thermal relay and drive motor, and is rated for 6–63A at 220V AC, with compatibility for both 50Hz and 60Hz power systems.
• Application: Suitable for home backup, fire protection, elevators, and other continuous power applications. Note: ~2s transfer time causes brief interruption. For seamless switching (e.g., sensitive equipment), choose PC-class ATS with ≤50ms transfer.
• Quality Assurance: Manufactured in our own factory with in-house testing. Professional engineering support provided for installation and technical inquiries.
